Encryption in transit is a production capability with consequences for people, software, and recovery. Encryption in transit work should begin with the decision that must remain true when a request, change, or failure reaches the sensitive boundary. Encryption in transit is not improved by a larger checklist alone; it improves when ownership, enforcement, evidence, and repair are explicit. Encryption in transit decisions below draw on OWASP Transport Layer Security Cheat Sheet and OWASP Authentication Cheat Sheet. Encryption in transit designs benefit from that source-backed framing because it makes a later investigation possible without relying on the memory of the person who made the original configuration.
Set the encryption in transit operating decision
Encryption in transit begins with the risk the system must control, not a product setting. List every connection carrying credentials, customer data, tokens, commands, or control-plane instructions: browser to edge, service to service, workload to database, job to queue, and operator to management plane. Decide where mutual authentication is required. Encryption in transit is a set of identity and routing decisions, not simply HTTPS at the public edge. A connection can use TLS while reaching the wrong service, accepting an untrusted certificate, or passing plaintext across an internal hop. Write the expected outcome, accountable owner, approved exception route, and stop condition before rollout. That record makes a technical choice reviewable and gives responders a basis for deciding whether observed behavior is intended or harmful.
Map encryption in transit boundaries and dependencies
Document TLS termination and re-encryption points, certificate ownership, DNS and discovery assumptions, and the identity expected at each hop. Restrict post-termination hops so plaintext cannot be reached by arbitrary peers. Bind service authorization to workload identity rather than network segment. A useful boundary is specific enough that a reviewer can identify the actor, protected resource or connection, enforcing component, and behavior when a dependency is slow or unavailable. State the irreversible moment too: an action may be technically reversible yet operationally irreversible once a customer, vendor, or downstream system has received the effect.
| Design element | Question to answer | Evidence to retain |
|---|---|---|
| Connection | What data or command crosses it? | Owner and identity requirement |
| Termination | Where is TLS ended or re-established? | Documented hop and policy |
| Certificate | Who issues and rotates it? | Inventory and expiry alert |
| Failure | What happens when verification fails? | Safe rejection and runbook |
Use proportionate encryption in transit controls
Maintain a managed protocol baseline, validate certificate chains and hostnames, automate renewal, and alert before expiry. Do not use broad verification bypasses to solve development or outage issues. Protect private keys with narrow access and avoid sharing wildcard credentials across unrelated systems. Match each safeguard to a credible failure mode. Preventive checks constrain known bad states; runtime signals detect conditions that escaped them; recovery procedures return the system to a safe state. Keeping those functions separate prevents a team from declaring success merely because a request or deployment completed without an immediate error.
NIST Zero Trust Architecture is useful for making enforcement and verification concrete. The nearby guides on Encryption in Transit: Operations Playbook, API Rate Limiting: Engineering Notes for Reliable Services, OAuth Security Architecture: Flows, Token Boundaries and Production Controls cover adjacent choices that commonly affect this design. Do not convert an emergency accommodation into a permanent privilege or configuration simply because it was needed once. Give it a reason, owner, expiration, and a record visible to the people responsible for risk.
Operate encryption in transit with evidence
Track handshake failures, verification errors, certificate expiry windows, protocol negotiation, and unexpected plaintext listeners by service and region. Test failed renewal, credential revocation, and a trust-store update so routine maintenance does not create a hidden outage or acceptance path. Decide before implementation which movement triggers investigation, pause, or rollback. Link dashboards, change records, and runbooks with stable identities or revisions so an operator can trace cause, effect, and decision across boundaries. Evidence close to the work also makes handoffs and audit practical without turning every engineer into a historian.
| Signal | What it can reveal | Review action |
|---|---|---|
| Expiry window | A certificate renewal risk | Alert before deadline |
| Handshake errors | Trust, routing, or client fault | Segment by peer and version |
| Verification bypasses | A risky temporary exception | Review configuration changes |
| Plaintext listeners | Boundary drift | Scan and reconcile regularly |

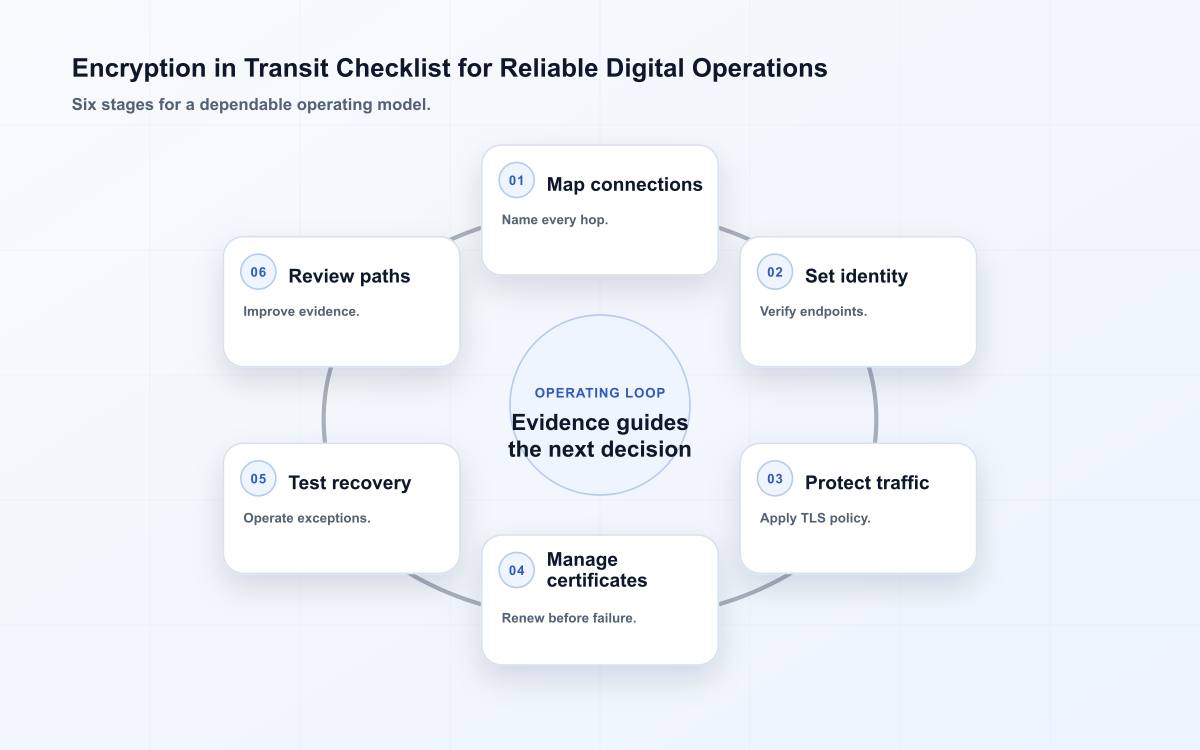

Roll out encryption in transit in six controlled stages
- Name the owner, protected boundary, and unacceptable outcome for encryption in transit.
- Capture a baseline for expiry window before changing enforcement.
- Implement the smallest scope that can provide real production evidence.
- Exercise one normal path and one harmful failure path with the operating team.
- Review customer impact, support load, and recovery evidence before widening exposure.
- Convert observed gaps into a policy, test, alert, or runbook improvement.
Implementation details for encryption in transit
Implementation requires a concrete test of the production path, not an assertion that a configuration exists. Certificate automation requires inventory and ownership. Track hostname or service identity, issuer, key location, renewal mechanism, and last successful deployment. A renewal can succeed at the authority but fail to install on every listener, so health checks must inspect what a client actually receives. Keep the test result with the change record so that later maintainers can see the conditions under which the control was verified.
Operating discipline keeps a sound design from drifting after the initial rollout. Mutual TLS can establish workload identity but does not decide whether that workload may perform a business action. Keep authentication, authorization, and routing separate. Map accepted trust roots by environment and prevent development or test certificates from being trusted by production clients. Assign the review cadence to the people who understand the affected work, and use actual events and access patterns to refine the model rather than adding blanket privilege or silent exceptions.
Recovery planning is part of the security design. Review proxy upgrades, load-balancer changes, mesh policy, and emergency routing with the same care as application changes. A temporary plaintext listener or disabled hostname check needs an owner, narrow window, and expiry alert. A practical exercise should confirm both that the harmful state can be stopped and that legitimate work can resume with a recorded decision trail.
Before expanding encryption in transit, review the design with the owner of connection and the operator who will respond when failure fails. Ask them to demonstrate the evidence described in the table, including the current decision, the last approved change, and the recovery authority. This review has a practical purpose: it exposes whether permissions, policies, certificates, secrets, events, or workflows are only described in documentation or are actually usable under production conditions. Record the gaps as owned work, then repeat the exercise after the change rather than treating the first walkthrough as final proof.
Set a review date and a measurable completion condition for this encryption in transit change. Evidence should show that the intended boundary is enforced, the exception route is controlled, and the responsible team can recover from the most likely failure without creating a wider security exposure.
Anchor the transport baseline in NIST SP 800-52, TLS 1.3, and RFC 8996’s deprecated protocol guidance; use MDN’s TLS guidance when comparing configuration choices. For adjacent implementation context, read the encryption operations playbook, API rate-limiting notes, and OAuth security architecture guide.
Encryption in transit takeaways
- Encryption in transit works when the boundary and owner are explicit.
- Use controls because they interrupt a specific credible harm.
- Keep exceptions narrow, expiring, and reviewable.
- Measure the customer or system outcome as well as control health.
- Practice recovery, preserve evidence, and revise the operating record.
Encryption in transit FAQ
What is the first implementation step? Start with what data or command crosses it, and retain the owner and identity requirement. A narrow owned boundary produces better evidence than an organization-wide conversion with unclear enforcement. How should an exception be handled? Treat it as a temporary decision with a named approver, limited scope, expiry, and audit record. It must be easier to review than an informal bypass and must not silently become the default path. What proves the design is working? Look for the operating signals above, a successful adverse-path exercise, and evidence that the relevant owner can explain Where is TLS ended or re-established? Without documenting the behavior. OWASP Transport Layer Security Cheat Sheet provides a useful verification reference for that final test.
Conclusion: make encryption in transit an operating capability
The durable version of encryption in transit is neither a one-time configuration nor a document completed in isolation. It is an owned decision with a defined boundary, proportionate controls, observable outcomes, and a practiced way to recover. Begin with one high-value path, retain the evidence it produces, and expand only after the people responsible can explain and operate the result confidently.
Transport-control expansion checks
Trace public, internal, administrative, backup, and partner paths. Verify identity, protocol policy, certificate lifecycle, downstream hops, and recovery evidence. A checklist is complete only when every connection has an owner and a tested failure path. Record the decision with its owner, acceptance evidence, exception rule, and review date so another team can operate it without private context.
| Decision | Evidence before release | Review signal |
|---|---|---|
| Scope and owner | Named boundary, accountable role, and expected outcome | Unowned or ambiguous work |
| Failure path | Rehearsed fallback, retry, and escalation | Aged or repeated exceptions |
| Change control | Versioned policy and rollback condition | Unexpected outcome after change |
| Recovery | Test result and correction authority | Time to restore and unresolved impact |
For adjacent transport decisions, read the plain-language encryption in transit guide and the encryption in transit operations playbook. Use the comparison to separate a path inventory from the runbook that operates it.
Keep a small connection register that can be read during an incident. It should show endpoint, owner, protocol policy, certificate source, termination point, downstream hop, alert, and renewal date. When a service is acquired or split, update the register as part of the change rather than waiting for a periodic audit. The register is valuable because it turns an abstract encryption promise into a set of inspectable paths and decisions.
Frequently asked questions
What should be decided first? Identify every protected connection and its owner. Which failure deserves an early rehearsal? Certificate renewal or trust-store drift on a real dependency path. What proves the checklist is useful? Current path evidence plus a tested recovery route.
