Edge gateways are a connected-systems capability that must be designed around an operating decision rather than a product label. Edge gateways connect local equipment with wider services while handling protocol translation, buffering, and local decisions. The operating pattern sets out the boundaries, lifecycle controls, and failure tests needed to run them responsibly. The practical question is who will use the result, what record is authoritative, and how the team will recover when a device, network, or dependent service is unavailable.
Gateway operations — Define the Operating Purpose
Start by documenting one costly workflow involving edge gateways: its trigger, asset, expected evidence, authorized actor, and outcome. A narrow example exposes the real requirements for identity, timing, data ownership, and support. It also prevents a prototype from becoming a broad platform claim before the first route can be operated.
| Decision | Question | Evidence |
|---|---|---|
| Scope | Which edge gateways action is in release one? | Gateway workflow and accountable owner |
| Identity | How is the asset and caller identified? | Gateway identity and access evidence |
| Failure | What happens when a dependency is absent? | Gateway retry and escalation route |
| Outcome | How is useful work confirmed? | Auditable result and metric |
Gateway operations — Design the Boundary
Separate source observation, local processing, transport, downstream storage, and human action. Give each boundary a contract with version, freshness expectation, and permission rule. Edge gateways should preserve enough context for an investigator to identify where a value or decision came from rather than asking one service to infer everything from a mutable label.
- Use stable asset and tenant identities throughout the edge gateways route.
- Keep observed time separate from receipt and processing time.
- Validate versioned inputs before they influence downstream work.
- Record rejected work with a reason and named owner.
- Make replay or replacement a tested operation, not an emergency improvisation.
Gateway operations — Choose Reliability Semantics
A reliable edge-gateway design states which failures are tolerated and how they appear. Networks can duplicate, delay, reorder, or lose records. Services can process work and lose the response. Use idempotent effects, bounded retry, durable source evidence, and explicit quarantine paths. Do not use a successful connection as proof that the business action completed.
| Failure mode | Design response | Monitor |
|---|---|---|
| Duplicate input | Recognize an event or operation identity | Duplicate rate and retained decision |
| Late input | Retain event time and apply a late-data policy | Oldest arrival delay |
| Invalid input | Quarantine with reason and controlled replay | Validation failures by version |
| Dependency outage | Pause or retry safely with ownership | Backlog age and recovery time |
Gateway operations — Apply Access and Lifecycle Controls
Grant the minimum authority that the gateway needs and make changes attributable. Identities, credentials, configuration, software versions, and asset ownership all change over time. The service must answer what was permitted when an action occurred, not only what is permitted today. Exercise replacement, revocation, and rollback with field and support staff.
Gateway operations — Validate a Real Case
For edge gateways, run a scenario involving normal work and an uncomfortable exception: a device is offline, a record arrives late, an operator lacks permission, and a dependent service is unavailable. Ask whether the user sees an honest state and whether support can reconstruct the route. IoT telemetry and edge gateways provide useful neighboring patterns for this test.
Gateway operations — Measure Operating Health
Measure edge gateways through evidence that maps to service quality: completion rate, stale-record rate, exception age, unauthorized attempts, manual bypasses, and time to restore a representative failure. Review a small sample of real cases so teams do not mistake a high availability percentage for a useful outcome.
Gateway operations — Frequently Asked Questions
Gateway operations — When should a team start?
Start when a repeated workflow has a named owner and a measurable cost of delay, error, or manual reconciliation. Build the smallest complete edge gateways path, including the unhappy path and recovery evidence, before adding adjacent features.
Gateway operations — What is the most common risk?
For edge gateways, the common risk is treating a transport or interface as the whole solution. Reliable connected work also needs asset identity, semantic data contracts, access policy, support ownership, and a visible method for correcting bad records.
Gateway operations — Key Takeaways
- Anchor edge gateways to one operational decision.
- Make source, time, identity, and quality context durable.
- Design recovery and exception ownership before scale.
- Test with a real field or operations case, not only a happy-path demonstration.
Gateway operations — Conclusion
An edge gateway becomes a dependable capability when it has clear boundaries, accountable ownership, and evidence that survives failure. Deliver one complete path, measure the work it improves, and expand only after the people responsible for the result can operate and explain it.
Gateway operations — Run an Operational Review
Gateway operations — Implementation Notes
Implement edge gateways as a sequence of observable releases. In the first release, keep the producer or source, identity registry, validation rule, one consumer, and support view connected end to end. Capture a baseline before switching users over: current completion time, recurring error, number of manual reconciliations, and the records that are difficult to explain. During a limited rollout, compare the new path with that baseline and look for unexpected gaps between the digital record and the physical or operational reality. A release that makes uncertainty visible is safer than one that reports success because traffic is flowing.
Configuration deserves the same discipline as application code. Version thresholds, mappings, topic or route permissions, asset associations, and retention rules; review changes with the owner of the affected workflow; and record when the new configuration became effective. This protects edge gateways from a common production failure: correct software interpreting a changed environment with an old assumption. Build a rollback that restores the previous known-good behavior, then test it with evidence that downstream consumers, users, and support tools see a coherent state.
Capacity planning is also a correctness concern. Estimate peak rather than average input, reconnect storms after a site outage, retained history, processing windows, and the time needed to catch up without making live work stale. Set quotas and backpressure behavior deliberately. If the system must shed load, define the least harmful data to defer and how an operator will know that it happened. Review cost alongside quality because an uncontrolled edge-gateway design may become so expensive that teams disable retention or diagnostics precisely when they are needed for an incident.
Finally, give users an honest interface to system state. Show whether the latest information is fresh, whether an action is pending or confirmed, and who owns the next exception. Do not represent a queued request as a completed business result. Provide a stable case or correlation identifier that lets a technician, analyst, and support engineer discuss the same occurrence without copying opaque payloads into chat. These details turn edge gateways from infrastructure that only specialists can interpret into a dependable part of daily operations.
Before expanding edge gateways, publish the operating decision, owner, escalation contact, and recovery evidence beside the release record. That small discipline makes the next incident easier to resolve and gives the next team a dependable starting point.
An edge-gateway service deserves a scheduled operating review because production evidence changes the design assumptions made during delivery. Review a representative week of normal activity and one difficult incident with the people who own the asset, service, security, and data responsibilities. Trace a record from its first observation to its final use. Check identity, timestamps, configuration or schema version, access decision, retry history, and the person who handled the exception. This is where a team discovers that a technically successful message had no business owner, an alert reached the wrong queue, or a recovered device quietly produced an older configuration. Record each finding as a concrete change with an accountable owner and due date. For Edge Gateways for Connected Systems: A Practical Guide, that review is more valuable than a generic maturity score because it tests the actual route users depend upon.
Use a small scorecard that measures reliability and usefulness together. Count incomplete records, stale evidence, unassigned exceptions, manual workarounds, recovery time, and decisions later reversed because context was missing. Segment those measures by site, device class, software version, and workflow state so a broad average does not hide a troubled cohort. Then test a repair: replay an event or record, rotate an identity, restore a blocked integration, and confirm the person doing the work can explain the result. The aim is not perfect data or zero alerts. It is an edge-gateway service whose limitations are visible, whose failures have a practiced route, and whose next improvement is selected from evidence rather than anecdote.

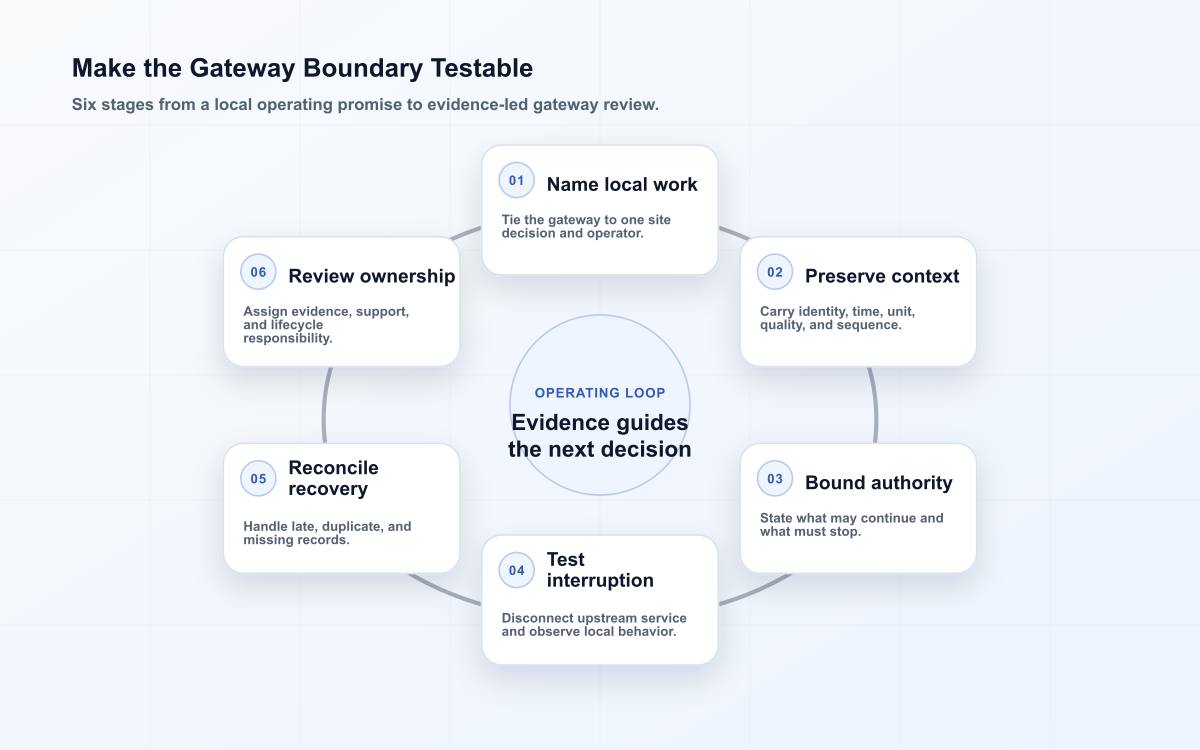

Gateway operations — Make the Gateway Boundary Testable
An edge gateway becomes valuable when the site can continue a bounded piece of work during an upstream interruption and can later explain what happened. Write that boundary before selecting hardware. For example, a gateway may buffer refrigeration readings for four hours, reject commands when a safety interlock is unknown, and publish a compact state summary after reconnect. Those are operating promises; processor speed and protocol count are secondary choices. Ask the site operator to name the local action that must continue, the action that must stop, and the evidence that distinguishes a confirmed result from a last-known state.
| Gateway decision | Concrete acceptance check | Owner |
|---|---|---|
| Local buffering | Disconnect the uplink and confirm bounded storage plus a visible age indicator. | Site operations |
| Command authority | Attempt a prohibited or stale-state command and verify it is rejected. | Controls owner |
| Reconnection | Restore the link and reconcile duplicates, gaps, and late records. | Data owner |
| Lifecycle | Replace a certificate or gateway and verify the old identity cannot return. | Platform owner |
Keep the gateway contract explicit about time, quality, and ownership. A reading should carry device identity, observed time, gateway receipt time, unit, quality state, and a sequence or event identifier. A local rule should state whether it can act on stale input, how long that authority lasts, and who reviews an exception. NISTIR 8259A is helpful for turning device capabilities into requirements, while NIST SP 800-82 keeps reliability and safety context visible. These references do not choose a product for you; they help the team ask whether the proposed boundary can be secured, supported, and recovered.
Selected references for this topic include MQTT Version 5.0, NIST IR 8259A, OpenTelemetry observability primer, and TLS 1.3. The selected publications anchor the gateway boundary; apply them with site procedures and deployment obligations.
For adjacent operating patterns, compare Gateway Security: A Founder's Guide to Connected Systems, IoT Telemetry for Connected Systems: A Practical Guide, MQTT Brokers for Connected Systems: A Practical Guide. The neighboring references connect edge gateways for connected systems to its wider operating context.
