An MQTT broker is a connected-systems capability that must be designed around an operating decision rather than a product label. MQTT brokers manage device sessions, topic routing, and delivery behavior for connected systems. The guidance below explains how to design namespaces, session policy, authorization, and operational recovery without treating a broker as an invisible pipe. The MQTT broker review must identify who uses the result, which record is authoritative, and how the team recovers when a device, network, or dependent service is unavailable.
Choose the Connected Workflow for MQTT
Start by documenting one costly workflow involving MQTT brokers: its trigger, asset, expected evidence, authorized actor, and outcome. For an MQTT broker, a narrow example exposes the real requirements for identity, timing, data ownership, and support. For an MQTT broker, it also prevents a prototype from becoming a broad platform claim before the first route can be operated.
| Decision | Question | Evidence |
|---|---|---|
| Scope | Which MQTT broker action is in release one? | Named workflow and owner |
| Identity | How is the asset and caller identified? | Durable ID and access record |
| Failure | MQTT broker: what happens when a dependency is absent? | Visible retry or escalation path |
| Outcome | How is useful work confirmed? | Auditable result and metric |
Map MQTT Topics to Real Boundaries
Separate source observation, local handling, transport, downstream storage, and human action. For an MQTT broker, give each boundary a contract with version, freshness expectation, and permission rule. MQTT brokers should preserve enough context for an investigator to identify where a value or decision came from rather than asking one service to infer everything from a mutable label.
- Use stable asset and tenant identities throughout the MQTT broker route.
- Keep observed time separate from receipt and handling time.
- Validate versioned inputs before they influence downstream work.
- Record rejected work with a reason and named owner.
- Make replay or replacement a tested operation, not an emergency improvisation.
Assign Delivery Semantics by Consequence
A reliable MQTT broker design states which failures are tolerated and how they appear. Networks can duplicate, delay, reorder, or lose records. Services can complete the workflow and still lose the response. For an MQTT broker, use idempotent effects, bounded retry, durable source evidence, and explicit quarantine paths. Treat connection success as transport evidence, not proof that the business action completed.
| Failure mode | Design response | Monitor |
|---|---|---|
| Duplicate input | MQTT broker: recognize an event or operation identity | Duplicate rate and retained decision |
| Late input | MQTT broker: retain event time and apply a late-data policy | Oldest arrival delay |
| Invalid input | MQTT broker: quarantine with reason and controlled replay | Validation failures by version |
| Dependency outage | Pause or retry safely with ownership | Backlog age and recovery time |
Bind Clients to Scoped MQTT Authority
Grant the minimum authority that MQTT brokers need and make changes attributable. For an MQTT broker, identities, credentials, configuration, software versions, and asset ownership all change over time. For an MQTT broker, the service must answer what was permitted when an action occurred, not only what is permitted today. Exercise replacement, revocation, and rollback with field and support staff.
Rehearse a Broker Failure Case
For MQTT brokers, run a scenario involving normal work and an uncomfortable exception: a device is offline, a record arrives late, an operator lacks permission, and a dependent service is unavailable. For an MQTT broker, ask whether the user sees an honest state and whether support can reconstruct the route. For an MQTT broker, IoT telemetry and edge gateways provide useful neighboring patterns for this test.
Measure Broker Evidence and Recovery
Measure MQTT brokers through evidence that maps to service quality: completion rate, stale-record rate, exception age, unauthorized attempts, manual bypasses, and time to restore a representative failure. For an MQTT broker, review a small sample of real cases so teams do not mistake a high availability percentage for a useful outcome.

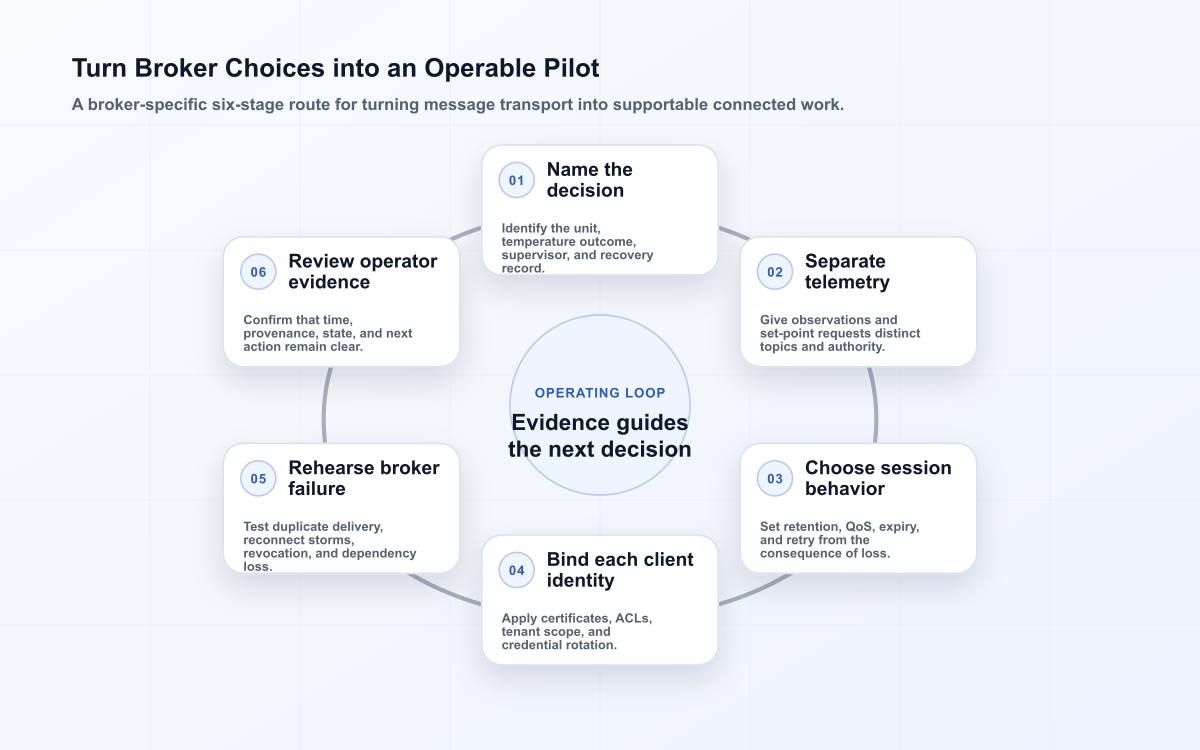

Turn Broker Choices into an Operable Pilot

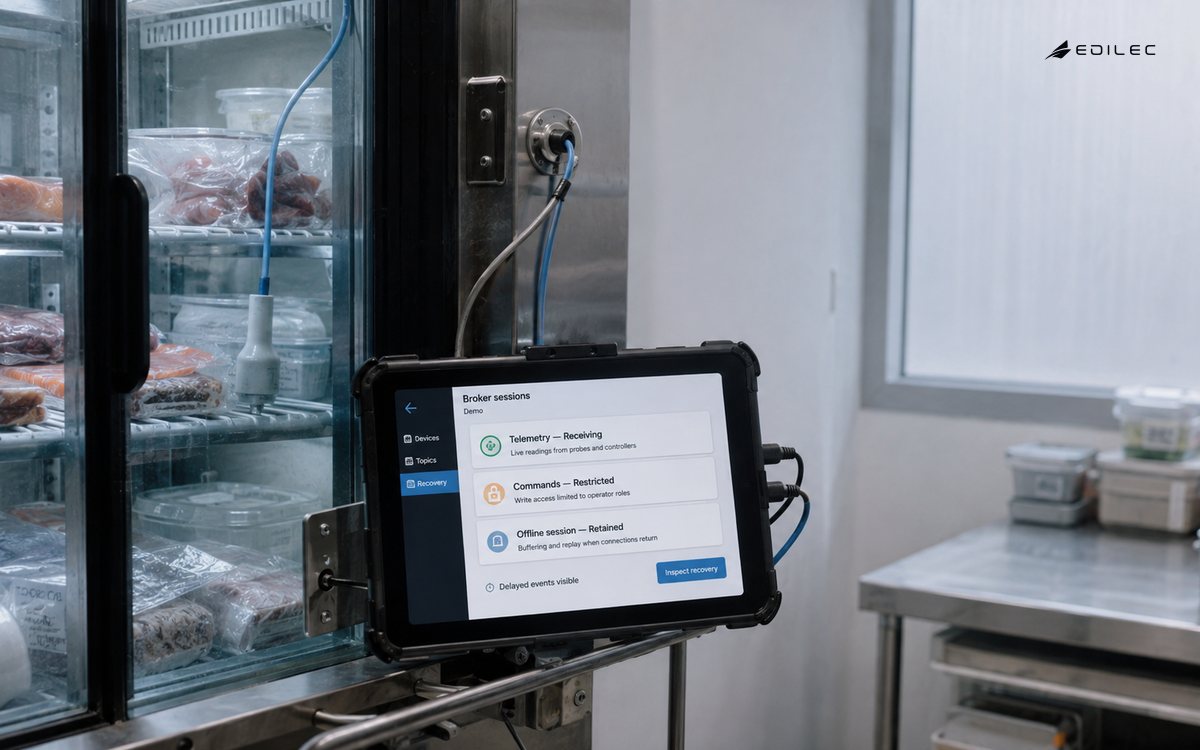

Example: Cold-Chain Topic and Session Test
A useful pilot is small enough to observe end to end. Imagine 120 refrigeration units publishing temperature and door-state events through one broker. Keep telemetry topics separate from command topics, give each unit a stable client identity, and make the dashboard consume a projection rather than subscribe to every raw event. The acceptance question is not whether messages appear; it is whether a supervisor can tell which unit produced a reading, when it was observed, whether it was delayed, and what action is permitted.
Choose delivery behavior from the consequence of loss. A temperature sample that is superseded by the next sample may tolerate a different policy from a command that changes a set point. Retained state can help a newly connected dashboard learn the last known value, but it should not be mistaken for a complete history. Record the policy in the topic contract and test the behavior after broker restart, client reconnect, and duplicate delivery.
The pilot should finish with an operator exercise: disconnect a site, revoke one client credential, flood reconnects in a test window, and inspect the audit trail. If the team cannot identify the affected topic, the last accepted event, and the safe recovery action, the broker is not yet an operating capability. Expand only after the evidence is legible to the people who will support it.
The MQTT specification sets session and delivery semantics; NISTIR 8259A frames device capabilities; TLS 1.3 establishes the transport protection baseline; and the Mosquitto configuration manual makes broker controls concrete. MQTT Version 5.0; NISTIR 8259A: IoT Device Cybersecurity Capability Core Baseline; The Transport Layer Security Protocol Version 1.3; mosquitto.conf manual.
For adjacent reading, the telemetry guide explains what the broker should preserve, the gateway guide covers the site boundary, and the event-streaming guide helps with downstream consumers. For an MQTT broker, IoT Telemetry for Connected Systems: A Practical Guide clarifies one boundary; Edge Gateways for Connected Systems: A Practical Guide adds a complementary operating pattern; and Sensor Data Pipelines for Connected Systems: A Practical Guide helps connect the decision to a wider connected-systems workflow.
MQTT Broker FAQ
When Is a Broker Workflow Ready to Start?
For an MQTT broker, start when a repeated workflow has a named owner and a measurable cost of delay, error, or manual reconciliation. Build the smallest complete MQTT broker path, including the unhappy path and recovery evidence, before adding adjacent features.
Which Broker Risk Appears Most Often?
For MQTT brokers, the common risk is treating a transport or interface as the whole solution. For an MQTT broker, reliable connected work also needs asset identity, semantic data contracts, access policy, support ownership, and a visible method for correcting bad records.
MQTT Broker Key Takeaways
- Anchor MQTT brokers to one operational decision.
- Make source, time, identity, and quality context durable.
- MQTT broker: design recovery and exception ownership before scale.
- Use a field-representative MQTT scenario with operators; a polished happy path is not enough.
Conclusion: A Broker People Can Operate
An MQTT broker becomes a dependable capability when it has clear boundaries, accountable ownership, and evidence that survives failure. For an MQTT broker, deliver one complete path, measure the work it improves, and expand only after the people responsible for the result can operate and explain it.
Review Broker Evidence With Operators
Engineering Details for MQTT Operations
Implement MQTT brokers as a sequence of observable releases. For an MQTT broker, in the first release, keep the producer or source, identity registry, validation rule, one consumer, and support view connected end to end. For an MQTT broker, capture a baseline before switching users over: current completion time, recurring error, number of manual reconciliations, and the records that are difficult to explain. For an MQTT broker, during a limited rollout, compare the new path with that baseline and look for unexpected gaps between the digital record and the physical or operational reality. For an MQTT broker, a release that makes uncertainty visible is safer than one that reports success because traffic is flowing.
Configuration deserves the same discipline as application code. For an MQTT broker, version thresholds, mappings, topic or route permissions, asset associations, and retention rules; review changes with the owner of the affected workflow; and record when the new configuration became effective. This protects MQTT brokers from a common production failure: correct software interpreting a changed environment with an old assumption. For an MQTT broker, build a rollback that restores the previous known-good behavior, then test it with evidence that downstream consumers, users, and support tools see a coherent state.
MQTT broker: capacity planning is also a correctness concern. Estimate peak rather than average input, reconnect storms after a site outage, retained history, handling windows, and the time needed to catch up without making live work stale. MQTT broker: set quotas and backpressure behavior deliberately. For an MQTT broker, if the system must shed load, define the least harmful data to defer and how an operator will know that it happened. Review cost alongside quality because an uncontrolled MQTT broker design may become so expensive that teams disable retention or diagnostics precisely when they are needed for an incident.
Finally, give users an honest interface to system state. For an MQTT broker, show whether the latest information is fresh, whether an action is pending or confirmed, and who owns the next exception. Do not represent a queued request as a completed business result. For an MQTT broker, provide a stable case or correlation identifier that lets a technician, analyst, and support engineer discuss the same occurrence without copying opaque payloads into chat. These details turn MQTT brokers from infrastructure that only specialists can interpret into a dependable part of daily operations.
Before expanding MQTT brokers, publish the operating decision, owner, escalation contact, and recovery evidence beside the release record. For an MQTT broker, that small discipline makes the next incident easier to resolve and gives the next team a dependable starting point.
MQTT broker operations deserve a scheduled review because production evidence changes the assumptions made during delivery. For an MQTT broker, review a representative week of normal activity and one difficult incident with the people who own the asset, service, security, and data responsibilities. Trace a record from its first observation to its final use. For an MQTT broker, check identity, timestamps, configuration or schema version, access decision, retry history, and the person who handled the exception. For an MQTT broker, this is where a team discovers that a technically successful message had no business owner, an alert reached the wrong queue, or a recovered device quietly produced an older configuration. For an MQTT broker, record each finding as a concrete change with an accountable owner and due date. For MQTT Brokers for Connected Systems: A Practical Guide, that review is more valuable than a generic maturity score because it tests the actual route users depend upon.
Use a small scorecard that measures reliability and usefulness together. For an MQTT broker, count incomplete records, stale evidence, unassigned exceptions, manual workarounds, recovery time, and decisions later reversed because context was missing. For an MQTT broker, segment those measures by site, device class, software version, and workflow state so a broad average does not hide a troubled cohort. For an MQTT broker, then test a repair: replay an event or record, rotate an identity, restore a blocked integration, and confirm the person doing the work can explain the result. MQTT broker: the aim is not perfect data or zero alerts. It is an MQTT broker service whose limitations are visible, whose failures have a practiced route, and whose next improvement is selected from evidence rather than anecdote.
