Enterprise Reporting Architecture for Client-Facing Workflows

An enterprise reporting architecture checklist for client-facing workflows should make a service fact explainable from customer interaction to leadership decision. Start with a customer request, delivery milestone, or case resolution, then trace the event through the systems that create, enrich, copy, and report it. The exercise usually reveals that a friendly dashboard label hides several different timestamps, status conventions, and ownership boundaries. Reporting architecture is not a warehouse diagram. It is the operating agreement that says which event counts, who can correct it, how fresh it must be, and what a person should do when it is incomplete.

Define events, grain, and customer-safe outcomes

Choose a grain that matches the decision: one case, one customer journey, one entitlement period, or one daily service cohort. Name the event that starts and ends each duration. A case created time is not necessarily the time a customer requested help, and a status changed time is not necessarily a resolved outcome. Record source time, ingestion time, effective time, identifier, actor or process, and event version where material. This allows analysts to answer late-arrival and correction questions without silently changing historical service results.

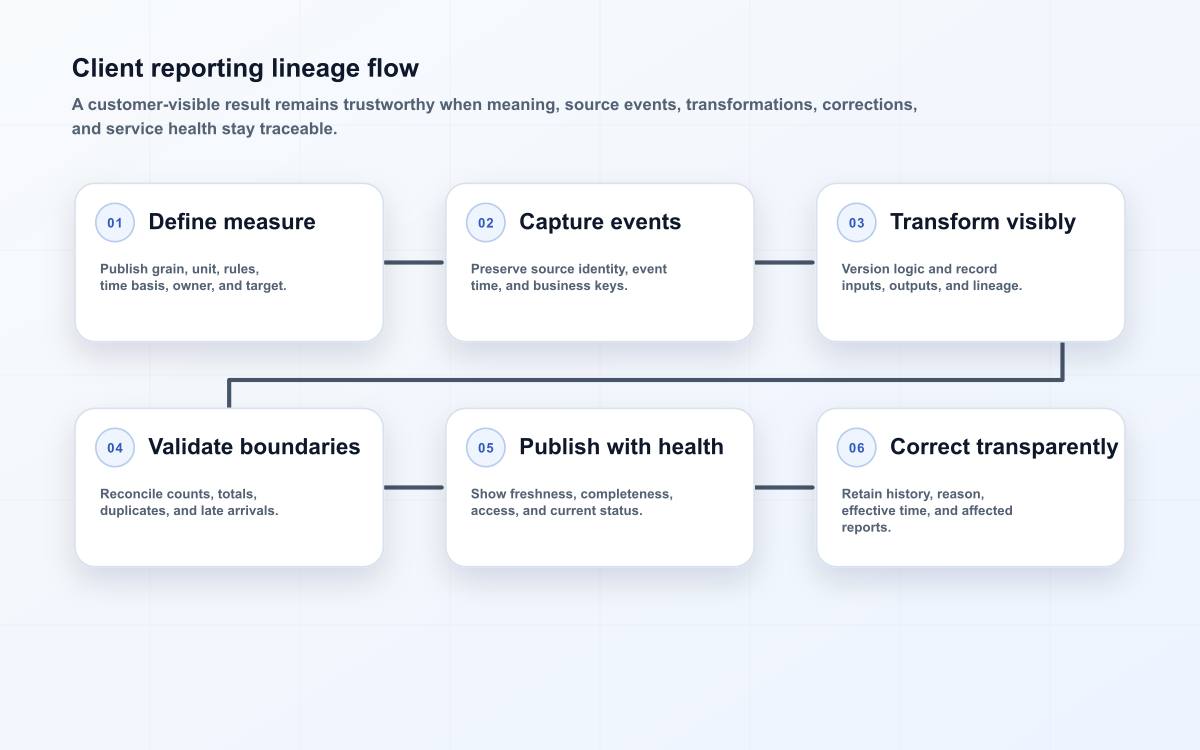

Design lineage and reconciliation into the pipeline

For every certified workflow measure, document source datasets, transformations, join logic, refresh target, owner, and known exclusions. Reconcile material record counts and values at each boundary, including records deliberately excluded. A pipeline can run successfully and still produce the wrong business result when an identifier changes, a filter is widened, or a status mapping drops an exception. Keep failing rows and reconciliation differences visible to the people who can fix them. Lineage should lead from a reported number to the underlying customer-safe evidence, not just to a technical job name.

Publish a reporting data contract

For every customer-visible measure, publish its business meaning, grain, unit, source event, inclusion and exclusion rules, time basis, freshness target, owner, and correction policy. The contract should distinguish when an event occurred from when it was received or processed, because late data can otherwise rewrite an earlier service story without explanation. W3C’s PROV-O recommendation provides a vocabulary for entities, activities, and agents that can underpin lineage; teams do not need to expose the ontology to customers, but they do need the ability to trace a displayed result to the transformations and records that produced it.

Treat correction as a product behavior. When source data changes, preserve the prior value, correction reason, effective time, and downstream reports affected. Reconcile counts and financial totals at boundaries where ownership changes, and publish a status when freshness or completeness is outside target. Edilec’s enterprise reporting architecture guide, record ownership checklist, and team data synchronization guide provide the supporting decisions for authoritative records, inter-team handoffs, and investigation.

Separate operational and analytical needs

A frontline agent needs current case context and an immediate next action; a product leader needs patterns across periods; finance may need a governed close view. Do not force one data product to serve every latency, access, and retention requirement. Publish operational views with explicit freshness and correction behavior, then build analytical histories that preserve versioned facts. Where a client-facing report exposes account detail, use minimum necessary attributes and protect exports. This separation makes both experiences more dependable and prevents a historical analytics load from becoming an accidental source for live customer decisions.

Operate reporting as a service

Set service targets for freshness, completeness, availability, and correction handling. Monitor pipeline success, but also measure late data, unmatched records, report access failures, disputed metrics, and time to repair. A data owner should acknowledge a material difference and state whether users should pause a decision. Review reporting changes through the same care used for workflow changes: test source variations, row-level access, historical comparisons, and rollback. This avoids making a polished dashboard the first place a customer-impacting incident becomes visible.

Implementation checklist

• Define the event, grain, clock, and customer outcome for each service measure.
• Publish lineage, owners, refresh expectations, and exclusions for certified views.
• Reconcile material counts and values at every reporting boundary.
• Separate live operational context from governed historical analysis.
• Protect client detail through task-based access and controlled exports.
• Treat late, corrected, and missing records as owned operating conditions.

Frequently asked questions

Should all reports use one central data model? Shared definitions are essential, but a single physical model can become a bottleneck. Use common identifiers, governed semantics, and publishable data products while letting operational and analytical services meet their own requirements. The key test is whether a reported claim can be traced and explained.

When should a report be restated? Decide in advance by measure and audience. Some operational reports should show the corrected current state; closed financial or performance periods may need a versioned restatement and an explanation. A silent rewrite makes comparison unreliable.

Implementation evidence worksheet

• Reporting architecture checkpoint 1: Write the business outcome in one sentence and name the person who can accept that outcome on behalf of the organization.
• Reporting architecture checkpoint 2: List every material state, its entry condition, its permitted next states, and the evidence that proves a change is legitimate.
• Reporting architecture checkpoint 3: Create a field register for identifiers, effective dates, owner, sensitivity, source, consumer, and correction route before configuring automation.
• Reporting architecture checkpoint 4: Run a normal case and a deliberately incomplete case with the people who will operate the process; capture every manual step and undocumented decision.
• Reporting architecture checkpoint 5: For every handoff, state what the sender guarantees, what the receiver validates, how duplicate delivery is handled, and who owns a rejection.
• Reporting architecture checkpoint 6: Define a customer-safe or requester-safe status for each delay so frontline staff can explain progress without exposing internal notes or speculation.
• Reporting architecture checkpoint 7: Prepare a reconciliation that compares counts, material values, state, and age between the initiating record and the resulting operational record.
• Reporting architecture checkpoint 8: Choose thresholds that open owned work rather than merely sending alerts; record the queue, service target, escalation point, and recovery authority.
• Reporting architecture checkpoint 9: Test a failed dependency, an out-of-order update, an unauthorized action, and a correction after downstream work has begun; retain the resulting evidence.
• Reporting architecture checkpoint 10: Document which roles may read, change, approve, export, administer, or override the process, including temporary access and delegated authority.
• Reporting architecture checkpoint 11: Keep original context when a fact is corrected: prior value, source, time, actor or process, reason, approving authority, and correlation identifier.
• Reporting architecture checkpoint 12: Publish the smallest useful contract for each interface or report: purpose, scope, required inputs, freshness expectation, limits, owner, and support route.
• Reporting architecture checkpoint 13: Rehearse a support conversation around a confusing or delayed case so the communication path is as deliberate as the technical recovery path.
• Reporting architecture checkpoint 14: Inspect a sample of completed cases for evidence quality, not only elapsed time; a quick result that cannot be explained is not an operational success.
• Reporting architecture checkpoint 15: Set a release decision with explicit go, hold, and rollback criteria, and identify who can make each decision when information is incomplete.
• Reporting architecture checkpoint 16: Use a short post-release review cadence that pairs operational measures with a few real cases and records a single accountable improvement for each finding.
• Reporting architecture checkpoint 17: Version rules, definitions, mappings, and approval thresholds. Explain historical comparison breaks rather than silently replacing prior meaning.
• Reporting architecture checkpoint 18: Minimize the data carried into the workflow or view, and review access, retention, sharing, and export behavior against the stated business purpose.
• Reporting architecture checkpoint 19: Identify the workaround that experienced staff use today, then decide whether the target design should formalize, retire, or replace it with an owned exception.
• Reporting architecture checkpoint 20: Give every exception a stable identifier, severity, current state, next action, accountable owner, and a link to the business record it affects.
• Reporting architecture checkpoint 21: Confirm training with hands-on completion of a real task and an exception, rather than attendance alone; update the runbook from what the exercise reveals.
• Reporting architecture checkpoint 22: Review recurring overrides and repeated corrections as design evidence. They often signal unclear policy, bad data, missing capacity, or a brittle integration.
• Reporting architecture checkpoint 23: Protect audit and operating evidence from routine cleanup. Retention and retrieval instructions should let a future reviewer reconstruct a material decision.
• Reporting architecture checkpoint 24: End the implementation review by deciding what evidence would prove the next expansion is safe, useful, and supportable for the people doing the work.

Key takeaways

• Reporting starts with a defined service event, not a chart.
• Lineage and reconciliation make customer workflow measures defensible.
• Operational and analytical reporting need different freshness and access rules.
• A reporting service needs explicit recovery and change control.

Conclusion

Enterprise reporting architecture earns trust when every client-facing workflow measure has a clear event, owner, lineage, access boundary, and correction rule. Build the path from a customer interaction to a decision as an operable service, and reporting becomes evidence for better work rather than another disputed system of record.
