Retrieval pipelines should be treated as the production path that turns a request into permissioned source candidates and, when needed, a response supported by inspectable evidence, not as a free-standing model feature. A useful implementation starts with the work item that must improve, the person accountable for the result, and the evidence that proves the result is safe enough to use. That framing keeps design conversations concrete: which inputs are allowed, what the system may propose, what it must not decide, and how a user can see the basis for an output. It also makes room for operational reality. A system can sound capable in a demonstration yet create new queues, hidden data flows, and unreviewable exceptions when it is placed in routine work.
Define the retrieval pipelines operating boundary
The first operating decision for retrieval pipelines is the boundary. Teams should define which repositories and versions may answer a task, which data must stay out of the index, and when the system should return sources or abstain instead of synthesizing. Write this boundary as a short case contract that names the initiating event, permitted inputs, authoritative systems, expected output, prohibited action, human owner, and recovery route. The contract is not bureaucracy for its own sake. It gives engineers a testable behavior, operators a reason to stop a case, and reviewers a shared answer when a plausible-looking output conflicts with policy or source evidence. Change requests should update the contract before they expand permissions or scope.
| Control question | Practical decision | Evidence to keep |
|---|---|---|
| Outcome | Name the work result and its accountable owner. | Case contract, baseline, and success threshold. |
| Authority | State what the capability may recommend, read, or change. | Permission decision and approval rule. |
| Sources | Identify the records that can support an output. | Source owner, version, date, and access scope. |
| Exceptions | Define when to abstain, hold, or escalate. | Reason code, queue, and service target. |
| Recovery | Specify how to pause and reconcile a faulty path. | Incident record, affected cases, and restart approval. |
Engineer the evidence path

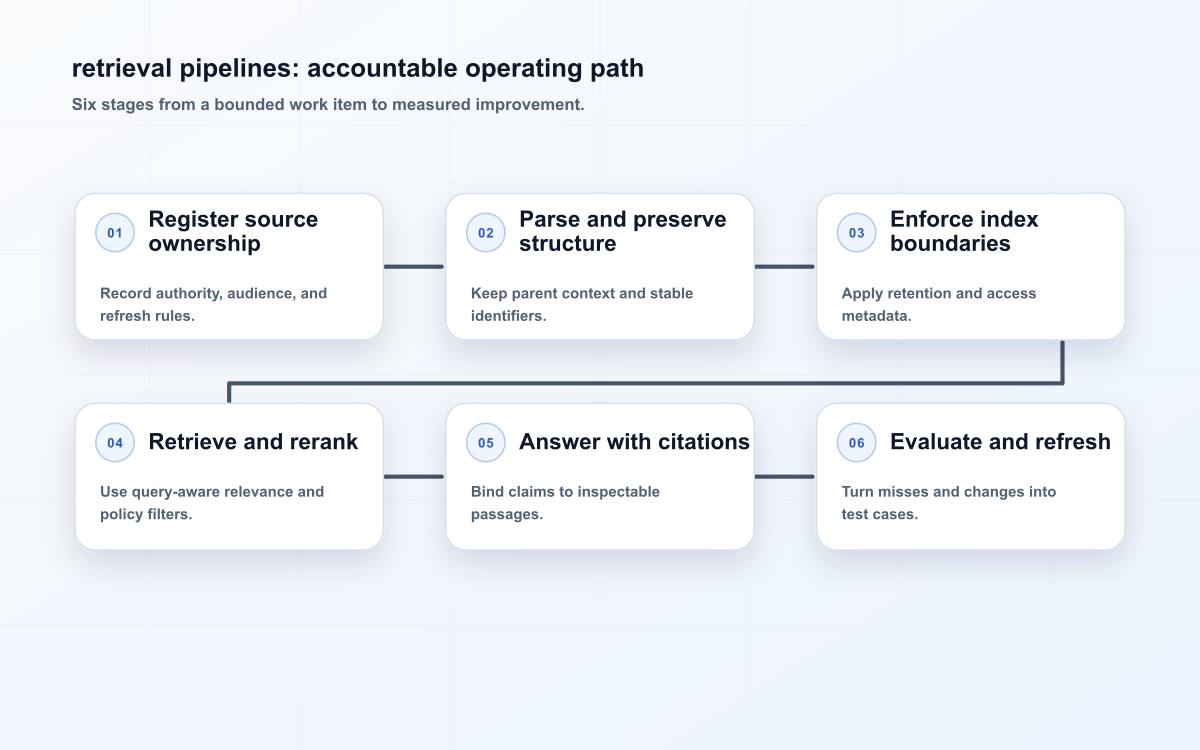

A dependable design preserves source identifiers, ingestion time, parser output, chunk and parent relationship, access metadata, retrieval query, filters, ranking scores, cited passages, and user feedback. The service should be able to reconstruct a completed case without relying on a person's memory or a chat transcript that has already scrolled away. In practice, that means stable identifiers, versioned configurations, timestamps, and an auditable connection between evidence, recommendation, approval, and outcome. Preserve document structure and metadata at ingestion, retrieve broadly enough for recall, rerank for the task, and attach answer claims to stable source references. The NIST AI Risk Management Framework is useful here because it frames trustworthy AI as a lifecycle concern: governance, mapping, measurement, and management are activities to make visible in the work, not a compliance label added at the end.
Run the service with signals
Operations decide whether retrieval pipelines remain useful after launch. Measure answer support rate, retrieval recall on judged cases, citation precision, stale-content rate, ingestion failures, latency by stage, and abstentions that reviewers consider appropriate. These measures need owners and thresholds, not just a dashboard. A rising correction rate may indicate source drift, a changed user population, or a confusing interface; it does not automatically justify a model swap. Review results by meaningful slices such as task type, business unit, data source, impact level, and exception route. Pair quantitative signals with sampled case review so the team can distinguish a genuine service improvement from a metric that improved because difficult work was diverted elsewhere.
| Signal | What it can reveal | Operational response |
|---|---|---|
| Outcome quality | Whether useful work is actually improving. | Sample cases and compare with the baseline. |
| Exception pattern | Where policy, data, or model behavior is weak. | Route a named owner and add a durable test case. |
| Source or input freshness | Whether evidence remains fit for use. | Refresh, retire, or restrict the affected source. |
| Human intervention | Whether review capacity and authority are adequate. | Adjust routing, service targets, or staffing. |
| Cost and latency | Whether the service can scale responsibly. | Optimize the expensive path without lowering the quality gate. |
Roll out with a fallback
For rollout, begin with a small governed corpus and a versioned evaluation set; prove that retrieval finds the right source before optimizing model prose or expanding coverage. Establish a baseline before enabling the new capability, decide what result would pause expansion, and retain a reliable fallback. Start with a limited audience and a named support path. Releases should include a simple runbook: how to identify an affected case, how to inspect its trace, who can disable the capability, and how to reconcile downstream effects. This creates evidence for a real product decision rather than forcing the organization to infer quality from anecdote.
- Map normal cases, uncomfortable edge cases, and requests the service must decline.
- Name the business owner, technical owner, reviewer group, and incident contact.
- Version the configuration, sources, prompts, tools, and evaluation set used for each release.
- Set release criteria for quality, permissions, latency, cost, and support readiness.
- Give users a visible way to report an incorrect result or a missing source.
- Review the evidence after each expansion before granting broader data access or action authority.
Prevent predictable failures
The recurring failure is treating chunk size or embedding choice as the whole system, then discovering that source ownership, document updates, authorization, and evidence display were never engineered. This is why RAG knowledge bases for support teams is a useful adjacent design problem: the interface is only one layer of a system that also needs ownership, access controls, evidence, and recovery. Use pre-mortems with operators and reviewers to identify the moment when a bad output could become a bad decision. Then convert that moment into a deterministic check, a review gate, an explicit abstention, or a compensation path. A model should never be the only place where a material control exists.
Improve with verified cases
Use every verified retrieval miss as an engineering artifact. Record whether the source was absent, misparsed, incorrectly permissioned, stale, poorly chunked, not retrieved, or retrieved but not selected. That taxonomy prevents a generic request to make the model smarter from masking a content or indexing defect. Keep the original query and the source that should have been found, then re-run the case after each ingestion or ranking change. A pipeline becomes maintainable when failures point to a diagnosable stage.
Corpus change needs the same care as code change. New policies, revised documents, deleted records, and changed access groups can alter answers without any model release. Monitor ingestion lag and deletion propagation, and preserve a source version in every answer trace. When a content owner revokes or replaces a document, test that the old passage no longer appears and that the replacement has the expected authority. This is how retrieval quality remains tied to the organization's real knowledge lifecycle.
Choose chunking and ranking settings as hypotheses to evaluate, not permanent infrastructure facts. A chunk that is too small may lose the qualifier that changes a policy's meaning; one that is too large may hide the relevant passage among unrelated text. Keep parent-document links so a user can inspect the surrounding context. For structured material, preserve headings, tables, effective dates, and record identifiers rather than flattening everything into generic text. The same principle applies to ranking: a query for a procedure may favor current authoritative guidance, while a support investigation may favor the exact history for one account. Retrieval pipelines should encode those task distinctions deliberately.
Make source stewardship visible in the operating calendar. Content changes, access changes, parser upgrades, and index migrations should each trigger proportionate regression checks. That cadence keeps retrieval engineering connected to the teams that create and retire the material the pipeline is expected to explain.
Key takeaways
- Retrieval pipelines need a bounded job and a named accountable owner.
- Evidence, permissions, and approval should be inspectable outside model instructions.
- Measure quality and operational burden by meaningful case slices, not a single average.
- Keep a fallback, a pause authority, and a reconciliation procedure before scaling.
- Use verified failures and reviewer corrections to improve the workflow and its evaluation set.
Frequently asked questions
When is retrieval pipelines ready for production? It is ready for a limited production release when the permitted task, source scope, evidence record, accountable owner, quality threshold, exception route, and rollback path are all explicit and exercised. What should be automated first? Choose a repeated, reversible step that reduces preparation work while preserving human authority over consequential decisions. How often should it be reviewed? Review after material changes to users, data, tools, policy, model configuration, or observed incident patterns, and set a regular operating cadence for the service.
Conclusion
Retrieval pipelines earns trust when it improves one bounded task while leaving responsibility and evidence legible. Keep the first release narrow, measure the work rather than the novelty, and expand only after the team can explain what happened in normal cases, exceptions, and recovery. That is the practical path from an impressive capability to an operation people can rely on.
Sources and practice notes
The original RAG paper motivates combining parametric generation with external non-parametric memory; a production pipeline still needs its own authorization, provenance, and lifecycle controls. The NIST Generative AI Profile and the OWASP Top 10 for LLM applications are complementary references: one helps structure lifecycle risk decisions, while the other keeps common application-level failure modes in view. Read them against the actual workflow and applicable obligations; neither replaces a careful assessment of local data, users, and consequences.
