Network observability is the practice of collecting enough trustworthy evidence to explain how a connected path behaved and what a responder can safely do next. It is not a synonym for storing every packet or creating more panels.
What Network Observability Means
In plain language, network observability collects and connects network evidence so a team can explain what changed, which assets were affected, and what restored normal behavior. The distinction between a technical capability and an operational promise matters. A capability can be installed; an operational promise must survive shift changes, supplier maintenance, partial outages, and ordinary human error. Describe the business or safety consequence first, then identify the data, interface, and authority needed to support it. The phrase becomes useful when it answers a concrete question rather than decorating an architecture diagram.
For network observability, collect evidence that can answer a question during an investigation: which asset communicated, over which path, when the behavior changed, and whether the collector itself was healthy. Link flow or performance telemetry to asset identity, interface metadata, topology, time synchronization, and recent changes. Missing telemetry deserves its own visible state; silence may mean normal behavior, an offline asset, a clock problem, or a failed collector. That distinction shortens diagnosis and reduces the chance that responders mistake an observation gap for a resolved incident.
| Operating question | Design answer | Evidence to retain |
|---|---|---|
| What job is being improved? | Name the workflow, response window, and accountable owner. | A current workflow map and agreed success measure |
| What must be true to act? | Use attributable data inside a known authority boundary. | Source, time, identity, quality, and approval context |
| What changes when something fails? | Expose the degraded state beside the decision and route it to the accountable responder. | Failure test, escalation path, and recovery record |
| How will the team know it works? | Review operational signals instead of launch completion. | Telemetry coverage, missing-data rate, investigation lead time, false-positive rate, mean time to isolate, and evidence retention compliance |
Architecture That Survives Real Conditions — service-path evidence
A practical network observability architecture starts with joining asset identity, topology, expected behavior, flow and performance data, log context, and a retention policy sized for investigation. Draw the journey from device or source through gateway, service, storage, and user action. Mark which component is authoritative, which values may be cached or estimated, what identity is used, and where human approval is required. These details are less glamorous than platform selection, but they expose dependencies before those dependencies become outages or unsafe workarounds.
The failure to guard against is straightforward: a pile of metrics does not help during an outage if timestamps disagree, ownership is missing, or symptoms cannot be connected to a dependency path. Design inconvenient cases before scale makes them harder to change. Define a known-safe behavior, give users a visible indication that the system is degraded, and rehearse how state is restored or reconciled. OT-adjacent work adds particular constraints because availability, safety, and reliability may matter differently than they do in ordinary business software.
Scope the First Release — service-path evidence
Start with one bounded network observability workflow. Specify the actor, input, decision, output, exception path, and recovery check in plain language. A narrow first release creates a baseline for latency, accuracy, operator effort, and failure recovery. It also gives security and operations teams something concrete to review. Expand only when the first path is understood, supported, and used; a broad platform promise is not evidence of operational value.
- List the real assets, people, records, and approvals involved in network observability.
- Write normal and degraded behavior before choosing an implementation detail.
- Keep source, time, quality, and ownership visible at consequential actions.
- Use versioned configuration or contracts for changes that affect operations.
- Exercise an exception path with the team that will support it.
- Review recurring friction before adding a second workflow.
Controls, Ownership, and Change — service-path evidence
Every consequential network observability change needs a named owner, a review point, and a reversible path. The change record should capture the reason, affected assets, configuration or contract version, approver, implementation window, verification result, and rollback condition. That creates a useful history for the next person on call. It also helps distinguish a planned behavior change from a fault, which is often the first step toward faster restoration.
| Risk pattern | Control to build | Review signal |
|---|---|---|
| Unknown current state | Expose freshness, quality, and source identity next to the decision. | Records that are stale, missing, or unowned |
| Uncontrolled change | Use versioned configuration, approval, and tested recovery. | Changes without verification or an accountable requester |
| Ambiguous authority | Separate observation, recommendation, and irreversible action. | Actions that bypass the intended review boundary |
| Hidden dependency failure | Test degraded behavior and document the support handoff. | Exception age, failed retries, and recovery duration |
Measure Operational Trust — service-path evidence
Use metrics that reveal whether the workflow is trustworthy, rather than merely whether a component is online. For network observability, track telemetry coverage, missing-data rate, investigation lead time, false-positive rate, mean time to isolate, and evidence retention compliance. Pair quantitative signals with a short review of actual exceptions: what happened, what evidence was present, where the team hesitated, and whether the recovery rule was clear. This combination exposes the gap between nominal availability and operational usability and prevents an SLA or dashboard from becoming a substitute for understanding work.
Related Connected-System Decisions — service-path evidence
Network observability is easier to assess alongside its neighbors. Network Observability: Mistakes and Fixes offers a focused companion view; Sensor Data Pipelines: Common Mistakes and Practical Fixes covers a dependency that commonly shapes design choices; and Alert Routing: Architecture Guide helps frame an operating consequence. These are connected choices, not a shopping list. The right design is the one that leaves operators with clearer authority and stronger evidence when the normal path stops being normal.
Primary references for network observability
Use these references to ground a plain-language network-observability review: NIST SP 800-94, NIST SP 800-137, OpenTelemetry Logs Data Model, and RFC 7011: IP Flow Information Export Protocol. Apply them with the deployment's safety, sector, and jurisdiction controls.

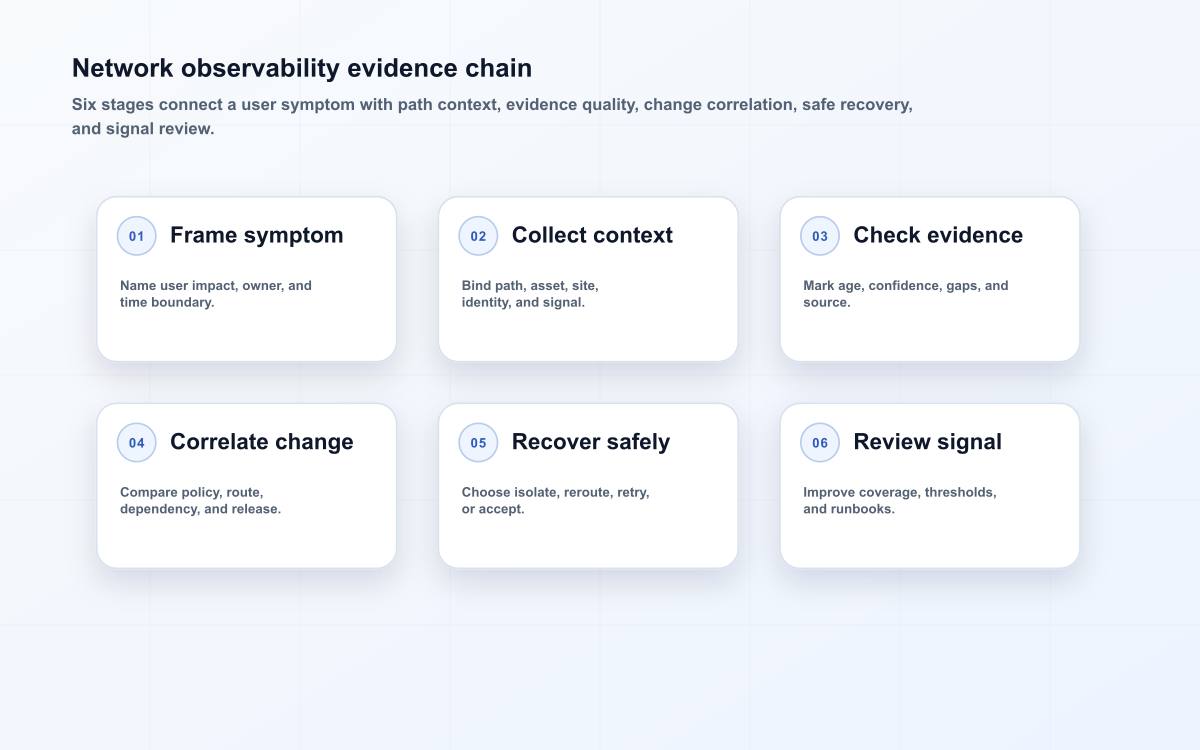

Build an evidence chain for network observability
Network observability becomes actionable when signals retain enough context to explain a user-visible outcome. Collect flow, reachability, latency, loss, authentication, configuration, and device-health evidence with a stable asset, site, service, and time identity. Keep event time separate from collection time, and record whether a signal was measured, inferred, sampled, or missing. A sudden increase in connection failures may be a route change, an expired certificate, a saturated link, or a device reboot; without context, the dashboard can show a spike but not support a decision. NIST SP 800-82 Rev. 3 and NIST SP 800-207 both support a context-aware approach: understand the operating environment, verify the request, and limit access while preserving the evidence needed to investigate.
For plain-language observability decisions, compare Network Observability: Mistakes and Fixes, Sensor Data Pipelines: Common Mistakes and Practical Fixes, Alert Routing: Architecture Guide; together they frame network investigation, ownership, and recovery without asking the reader to infer the operating boundary.
- Bind network signals to stable assets, services, sites, and timestamps.
- Separate measured, inferred, sampled, and missing evidence.
- Correlate symptoms with paths, policy decisions, dependencies, and changes.
- Treat telemetry gaps as a visible operating condition.
Network observability in plain language takeaways for operators
- Network observability should serve a named operational decision and owner.
- Keep source, time, quality, identity, and authority context near consequential actions.
- Design normal behavior, degraded behavior, and recovery before expanding integrations.
- Treat configuration and contract changes as operating events with evidence.
- Use recurring exceptions to improve the workflow rather than normalize uncertainty.
Network observability is proven during a timed investigation. Give a responder a recent symptom, such as an intermittent device connection or a sudden increase in retries, and ask them to establish the affected asset, path, timing, and recent change without privileged oral history. Note which records are missing, which clocks disagree, and where ownership is unclear. Repeat after a collector failure so the team distinguishes missing telemetry from a quiet network. The goal is not a perfect data lake; it is a coherent evidence trail that lets the next responder narrow the problem quickly and state the confidence of their conclusion.
Treat telemetry collectors, clocks, and metadata services as monitored dependencies. Their failure changes what the team can know about the network. An explicit health signal for the observation system prevents confidence from drifting upward precisely when the evidence is deteriorating.
Network-observability questions for a clear investigation
How is observability different from monitoring? Monitoring reports known measures; observability connects signals, context, time, changes, and ownership so a responder can investigate why a condition occurred. What is the smallest useful observability release? Instrument one critical service path end to end, retain enough context to explain a real symptom, and test the path when a collector, clock, identity source, or dependency fails. How should telemetry gaps be handled? Expose the gap and its age, distinguish missing evidence from healthy state, assign a responder, and record the effect on confidence in the investigation.
Conclusion: keep network investigation explainable
Reliable network observability makes ordinary work, exceptional work, and recovery understandable to the people responsible for the outcome. Establish the decision, protect the evidence, constrain authority, stage change deliberately, and review actual exceptions with the team that operates the system. That is how a connected capability becomes an operational asset instead of another opaque dependency.
