Retrieval Pipelines are easiest to understand as the sequence that acquires source material, transforms it into searchable units, retrieves candidates for a request, ranks them, and returns evidence to an application. For founders, the practical question is not whether the technology can produce an impressive demonstration. It is whether it can supply a product or assistant with current, authorized evidence instead of asking a model to rely on its training data for changing business facts. That distinction changes the work: define the decision, identify the evidence and authority behind it, and decide what happens when the system is unsure. This guide explains the operating choices that make retrieval pipelines testable, reviewable, and useful in day-to-day work. It also separates capability from accountability, because a capable model or index does not itself establish that an outcome is permitted, current, or correct.
What Retrieval Pipelines Mean
A retrieval pipeline should be described in terms of the work it changes. In a credible first release, the team can point to a requester, an input, trusted records or tools, a bounded result, and a person or service that owns the final decision. The boundary for retrieval pipelines is a named set of source systems and a query-to-evidence path with explicit freshness and access rules; it is not a generic data dump or a guarantee that every result is correct. Writing that sentence early prevents a common failure: teams expanding from one useful task into a broad assistant before they can explain its evidence, permissions, or recovery path. The NIST AI RMF is a useful framing here because it treats governance, context, measurement, and management as connected activities rather than a final sign-off.
Set a Useful Boundary
| Question | Practical decision | Evidence to retain |
|---|---|---|
| Who uses it? | A named role using retrieval pipelines for one repeatable task. | Identity, purpose, and access decision. |
| What is in scope? | a named set of source systems and a query-to-evidence path with explicit freshness and access rules; it is not a generic data dump or a guarantee that every result is correct | Source or tool owner, version, and policy. |
| What is returned? | A result that helps users supply a product or assistant with current, authorized evidence instead of asking a model to rely on its training data for changing business facts. | Output, supporting evidence, and timestamp. |
| When does it stop? | Cases involving uncertainty, missing evidence, or a prohibited action. | Reason code, handoff, and disposition. |
A boundary should also name the non-goals. Retrieval pipelines are often proposed as a shortcut around an unresolved data problem, policy disagreement, or poorly owned workflow. They cannot settle those questions. Instead, choose a narrow case where the organization can identify a correct or acceptable outcome and has a meaningful fallback. The fallback might be a source link, a review queue, a clarification prompt, or a conventional interface. A useful fallback protects users from confident but unsupported output and gives the team examples for improvement. It is part of the product, not an embarrassment to hide.
Design the System Around Evidence

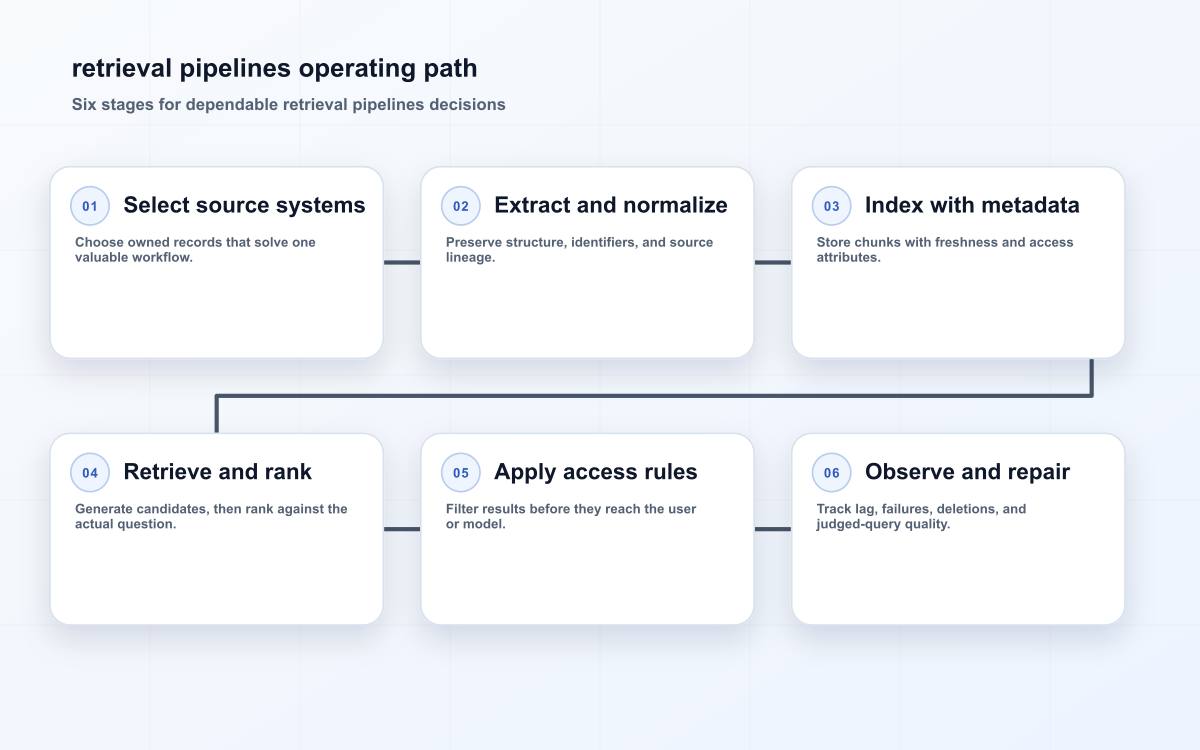

The working parts of retrieval pipelines are connectors, extraction, normalization, chunk boundaries, metadata, indexes, query interpretation, candidate retrieval, reranking, permission filters, citations, and observability. Each part should have an owner and a visible contract. Do not compress these responsibilities into a single prompt or service simply because the user experiences one screen. Source ownership determines what may be used; identity and authorization determine who may see or do what; application code enforces business invariants; and the model or retrieval layer provides bounded assistance. This separation keeps a bad response from becoming a bad state change. It also makes investigation possible: when an outcome is wrong, the team can tell whether the cause was data, retrieval, policy, tool execution, interface design, or model behavior.
| Layer | Decision | Operational check |
|---|---|---|
| Inputs | Accept only the records and requests required for retrieval pipelines. | Validate format, provenance, and access before processing. |
| Decision path | begin with the few sources that make one workflow valuable; adding unowned content usually harms evaluation and makes an incorrect answer harder to diagnose | Record configuration, policy version, and evidence used. |
| Output or action | Present a bounded result and supply a product or assistant with current, authorized evidence instead of asking a model to rely on its training data for changing business facts. | Validate schemas and enforce authority outside the model. |
| Recovery | Address a pipeline can return material that is stale, duplicated, partially parsed, or permitted for a different audience. | Route exceptions to an accountable person or service. |
The architecture needs a reliable record of what happened. Capture stable identifiers for the request, source version or tool call, configuration, policy decision, result, and final disposition. Retain only what is necessary for security and investigation, and set retention rules deliberately. A trace does not make a system safe by itself, but it lets engineers reproduce a failure rather than debate a screenshot. The UK National Cyber Security Centre's secure AI development guidance reinforces the need to carry security work from design through operation. For retrieval pipelines, that means reviewing dependencies, data handling, access paths, changes, and incident response as one system.
Evaluate Real Work Before Release
Evaluation for retrieval pipelines should begin with the work people already do, not a polished demo. Test ingestion failures, duplicates, deletions, changed permissions, long documents, ambiguous queries, and target passages that occur near the end of a record rather than only easy examples Build the set with operators, support staff, or subject-matter owners who can explain why an answer, action, or escalation is appropriate. Keep a holdout portion that is not used to tune the implementation. Then test changes against the same decision rules, including cases that look superficially successful but use weak evidence. The relevant technical literature, including Retrieval-Augmented Generation for Knowledge-Intensive NLP Tasks, can inform design choices, but local evaluation decides whether the system is fit for this particular workflow.
- Collect ordinary examples, edge cases, and cases where retrieval pipelines must decline or hand work back.
- Define what counts as a correct result, useful evidence, acceptable latency, and a safe failure before examining scores.
- Test permission boundaries, stale or conflicting inputs, dependency outages, and hostile or malformed content where relevant.
- Have an independent reviewer inspect a sample of outcomes, especially cases the system rates as easy.
- Version the test set, configuration, and policy so a regression can be reproduced instead of guessed.
Operate It as a Service
After release, the hard work becomes ordinary operations. The main risk is that a pipeline can return material that is stale, duplicated, partially parsed, or permitted for a different audience. Assign a product owner for the outcome, an engineering owner for the service, and a route for security or policy questions. Establish a change procedure for source material, prompts or configurations, models, tool definitions, and thresholds. Every change should have a reason, test evidence, rollout scope, and rollback option. OWASP guidance is particularly relevant when untrusted content can reach an AI component: instructions inside data, documents, or tool responses should not silently override the application's policy. Keep users informed about limitations in the moment they matter, rather than relying on a generic disclaimer.
A support process should distinguish a product defect, a source-data defect, a permissions problem, and a judgment call. Those categories lead to different fixes. Give operators a way to inspect the case, suppress a harmful result, correct the source where appropriate, and communicate the resolution back to the affected user. Treat ingestion as a product surface: preserve source lineage, monitor failed transformations, and make deletion or access changes propagate through every index and cache. This operating discipline is what lets a team expand carefully: new tasks inherit a working pattern for evidence, access, review, and recovery instead of starting from an empty page.
Measure Outcomes and Failure Modes
The most useful signals for retrieval pipelines are ingestion success, document-to-index delay, freshness lag, target-passage recall, rank quality, filter rejection rate, citation click-through, and recovery time after a connector failure. Read them together rather than celebrating one attractive number. A lower cost can conceal more manual rework; a high acceptance rate can conceal users who stop checking the system; a low refusal rate can conceal that the system answers questions it should not. Segment metrics by task type, source, user role, or input quality when that changes risk. Pair quantitative dashboards with sampled case review. The aim is not to prove that every output is perfect. It is to discover where the workflow is dependable, where it needs a better guardrail or source, and where it should not be used.
Key Takeaways
- Retrieval Pipelines should solve one named operational decision before it is expanded into a platform promise.
- Evidence, access control, and final authority belong in explicit system components, not in a model instruction alone.
- Evaluate representative work and unsafe cases before release, then preserve the cases that expose real weaknesses.
- Instrument outcomes, exceptions, and recovery so the owner can improve the workflow with facts rather than anecdotes.
- Use a useful abstention or handoff path whenever the evidence, policy, or confidence is insufficient.
Frequently Asked Questions
Is retrieval pipelines appropriate for a first AI project? It can be, when the task is narrow, the records or tools are owned, and someone can judge the result. Start with a process where success means more than a plausible-looking response: a verified source was found, a review was completed with enough context, or a bounded action was completed under policy. Avoid using the first release to resolve uncertain data ownership or rules that leadership has not agreed. Those issues need a decision before automation can make them visible at scale.
How much human review do retrieval pipelines need? Review should focus on source quality and the effect of retrieval errors. Operators should audit new connectors, malformed extraction, permission changes, and sampled high-impact queries, while automated checks handle routine freshness and indexing health. When a pipeline supports a consequential answer, the reviewer needs the original document, parsed segments, metadata, and ranking context, not merely a final snippet. This makes it possible to correct the source or transformation rather than repeatedly patching an answer downstream.
Conclusion
Retrieval Pipelines becomes valuable when it is treated as a dependable part of a real workflow rather than a standalone intelligence claim. Start with a bounded task, make source and authority visible, test normal and uncomfortable cases, and run the result with owners and evidence. That approach may feel slower than a broad launch, but it produces something teams can actually support. Once the first path earns trust through measured outcomes and recoverable failures, expansion becomes a deliberate product decision rather than a leap of faith.
